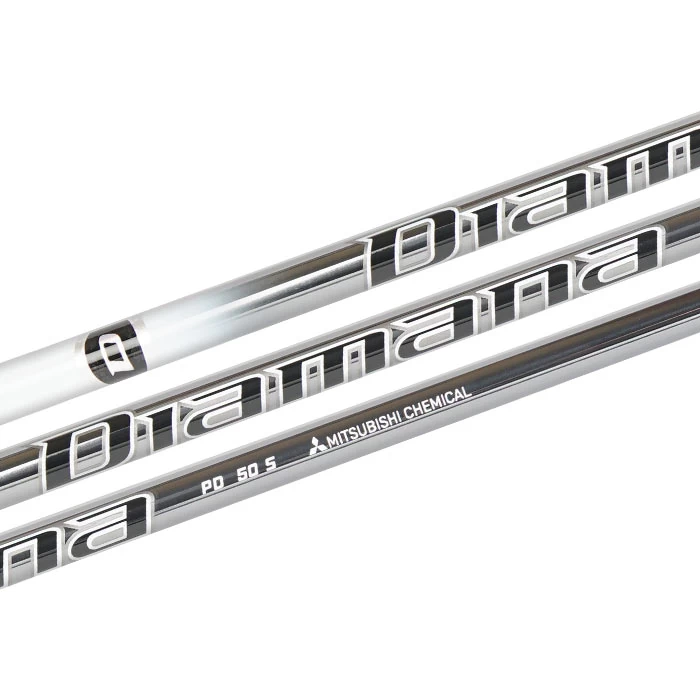

Mitsubishi 5th Generation Diamana PD Shaft

Overview

The Diamana™ PD-Series: Constructed using the dual-phase XLINK™ Resin System, high modulus MR70, and boron fiber infused hybrid prepreg for a powerful profile that is active in the hands with greater stability through the mid and tip section.

The second installment in Diamana™ 5th Generation is here with Diamana™ PD. In a continuing effort to offer the best fitting experience possible, Diamana™ PD shafts use Consistent Feel Design™ to minimize variance in butt OD, weight and balance point through the entire range – from 40R2 to 80TX. Offering the same “seamless” fitting experience as Diamana™ TB, the Diamana™ PD shafts feel more active in the hands with a stronger, stiffer tip to promote a lower-launching ball flight. Constructed using our exclusive dual-phase XLINK™ Tech Resin System, high modulus MR70, and Boron fiber to create a powerful profile with a smooth feel that remains stable throughout the swing.

Features

XLINK Tech Resin System
A ground-breaking innovation, Mitsubishi Chemical’s XLINK™ Tech Resin System is a unique, dual-phase application that utilizes both epoxy and non-epoxy components to produce a carbon-rich structure with a stronger bond between resin and fiber. The cross-linked phases create both high modulus and high elongation strength, yielding a lighter and universally stronger prepreg.

Consistent Feel Design
Created to aid the modern fitting process, Consistent Feel Design™ is an engineering approach that minimizes any variation in butt OD, weight or balance point through an entire shaft series. The goal is to remove any difference a player might feel as they hold a club, thereby removing any distraction when comparing different weights or flexes.

MR70
Specifically designed and developed by Mitsubishi Chemical for high-performance applications, MR70 is an innovative new carbon fiber material that is 20% stronger and has 10% the modulus than conventional materials.

Boron
Boron Fiber is equivalent in stiffness to high modulus carbon fiber with superior compression strength. As a result, Boron Fiber is often utilized for structure reinforcement most notably in military applications.

Ion Plating

Specifications

Shaft Name	FLEX	LENGTH (IN)	WEIGHT (G)	TIP OD (IN)	TIP LENGTH (IN)	BUTT OD (IN)	TORQUE (DEG)	KICK PT.
5th Gen. Diamana™ PD-Series 40	R2	46	45	0.335	3.0	0.604	6.1	Mid-High
5th Gen. Diamana™ PD-Series 40	R	46	45	0.335	3.0	0.604	6.1	Mid-High
5th Gen. Diamana™ PD-Series 40	SR	46	45	0.335	3.0	0.604	5.8	Mid-High
5th Gen. Diamana™ PD-Series 40	S	46	47	0.335	3.0	0.604	5.8	Mid-High
5th Gen. Diamana™ PD-Series 40	X	46	49	0.335	3.0	0.604	5.8	Mid-High
5th Gen. Diamana™ PD-Series 50	R	46	53	0.335	3.0	0.604	4.8	Mid-High
5th Gen. Diamana™ PD-Series 50	SR	46	53	0.335	3.0	0.604	4.8	Mid-High
5th Gen. Diamana™ PD-Series 50	S	46	53	0.335	3.0	0.604	4.8	Mid-High
5th Gen. Diamana™ PD-Series 50	X	46	56	0.335	3.0	0.604	4.8	Mid-High
5th Gen. Diamana™ PD-Series 50	TX	46	57	0.335	3.0	0.604	4.8	Mid-High
5th Gen. Diamana™ PD-Series 60	R	46	63	0.335	3.0	0.606	3.3	Mid-High
5th Gen. Diamana™ PD-Series 60	SR	46	63	0.335	3.0	0.606	3.3	Mid-High
5th Gen. Diamana™ PD-Series 60	S	46	64	0.335	3.0	0.606	3.3	Mid-High
5th Gen. Diamana™ PD-Series 60	X	46	65	0.335	3.0	0.606	3.2	Mid-High
5th Gen. Diamana™ PD-Series 60	TX	46	66	0.335	3.0	0.606	3.1	Mid-High
5th Gen. Diamana™ PD-Series 70	S	46	74	0.335	3.0	0.606	2.8	Mid-High
5th Gen. Diamana™ PD-Series 70	X	46	75	0.335	3.0	0.606	2.8	Mid-High
5th Gen. Diamana™ PD-Series 70	TX	46	76	0.335	3.0	0.606	2.7	Mid-High
5th Gen. Diamana™ PD-Series 80	S	46	84	0.335	3.0	0.606	2.9	Mid-High
5th Gen. Diamana™ PD-Series 80	X	46	84	0.335	3.0	0.606	2.9	Mid-High
5th Gen. Diamana™ PD-Series 80	TX	46	84	0.335	3.0	0.606	2.9	Mid-High
